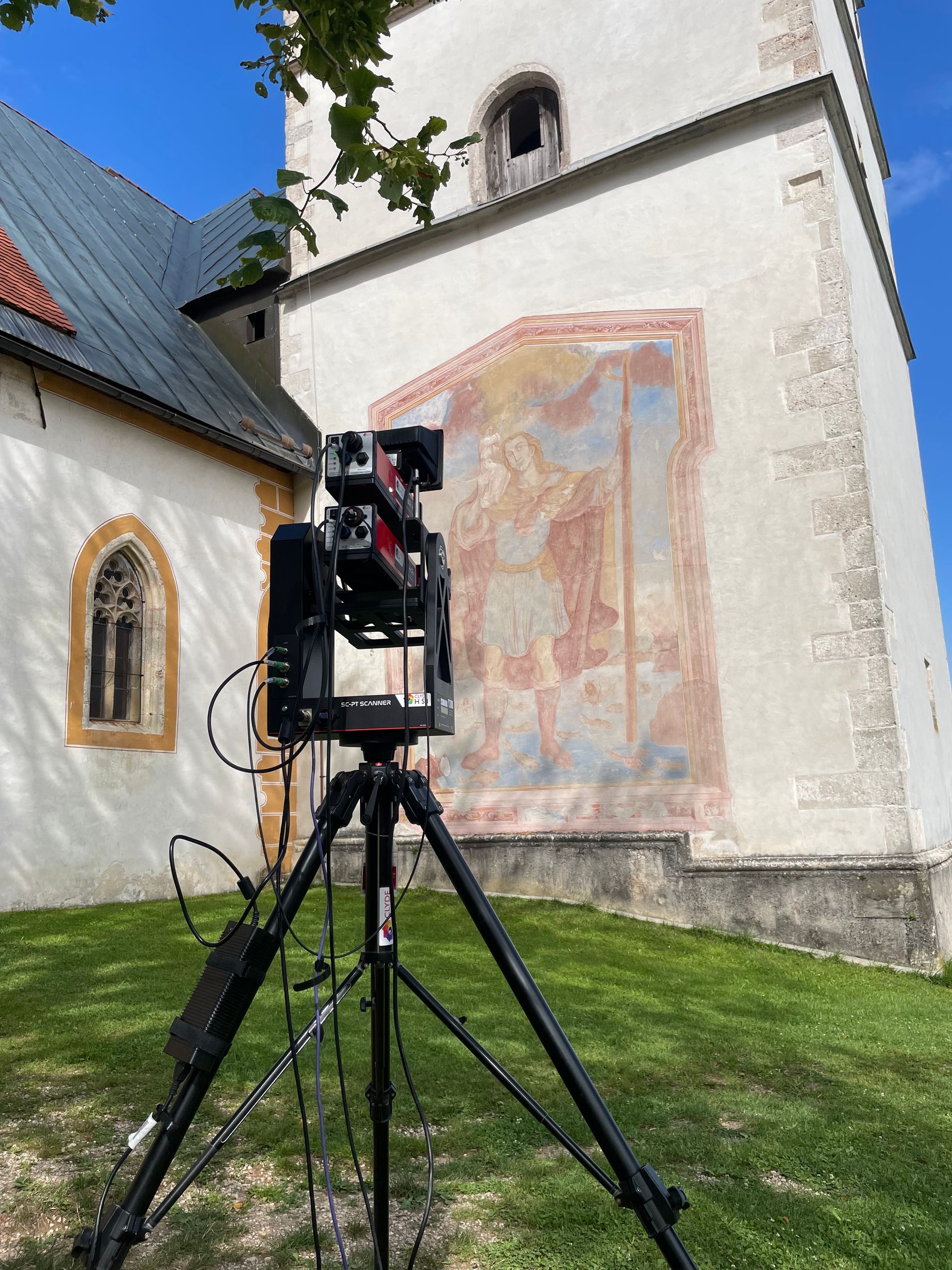

ROTATION SCANNING SYSTEM
Quick and easy set up with 360 degree hyperspectral scanning capability - ideal for scanning large scenes in difficult locations quickly and effectively.
Fully compatible with all of our
hyperspectral cameras and fully operated - by both experienced and new users - through our unique
spectraSENS software.
SYSTEM OVERVIEW
ClydeHSI's rotation scanning system is the ideal scanning solution for very large scenes that need to be scanned quickly, for use with telephoto objectives, or with UV hyperspectral cameras where other scanner types may not be appropriate.
Includes a zero-datum sensor and can be used either in horizontal or vertical scanning modes.
Compatible with all hyperspectral camera configurations, including single camera and dual VNIR and SWIR systems.
Compact, quick and easy to set up, and ideal for making measurements in locations considered "difficult".
FOV and IFOV are automatically calculated for the objective lens in use and this enables auto-square-pixel facility to set scan rotation speeds appropriately and synchronise with the spectral camera frame rates.
TECHNICAL SPECIFICATIONS
| Parameter | Value | Units | Comment |
|---|---|---|---|
| Angle of Rotation | 360 | Deg | Unlimited total rotation, scan between angles, forward and reverse operation |
| Angular Resolution | ≤0.005 | Deg | Angular resolution and optical stand-off sets the on target spatial resolution |
| Angular Scan Speed | ≤25 | Deg/s | Please consult ClydeHSI for higher scan speeds |
| Operation | Vertical or Horizontal | - | Adapter |
| Mounting | 3/8 or 1/4" | - | Fits all tripod systems using standard camera mounts |
| Interface | USB | - | USB compliant, adapters available for RS 232, and RS 422/485 |
| Power | 24 | V DC | Reverse polarity protected, PSU supplied, rechargeable battery packs available |
