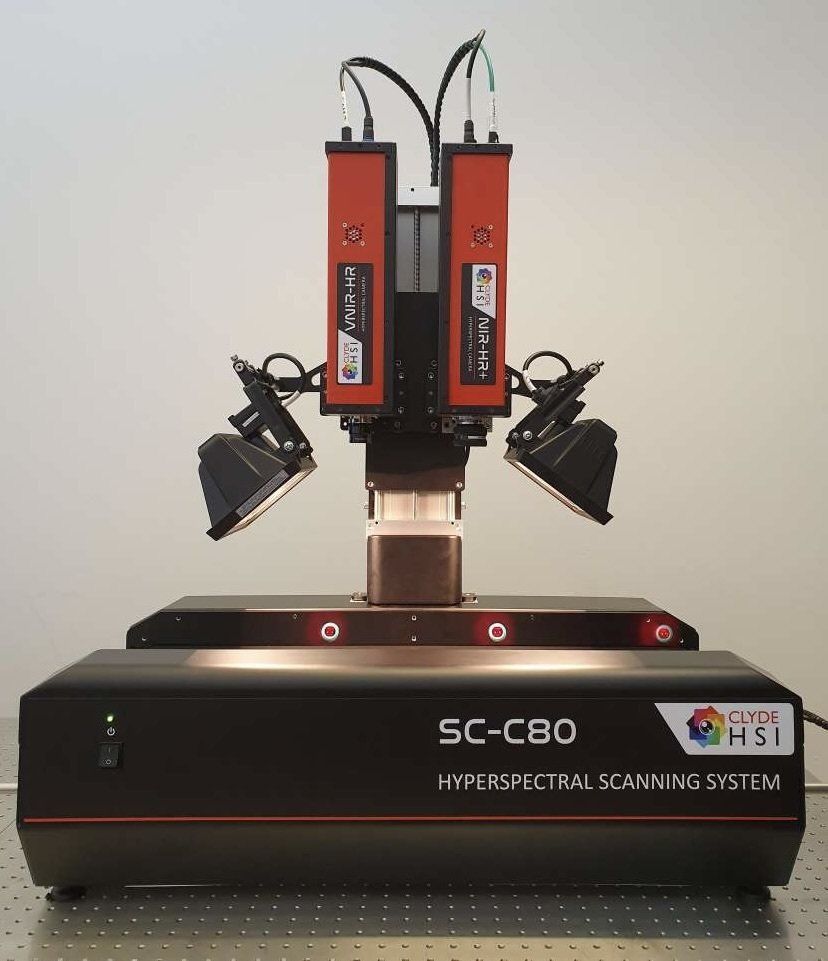

TRANSLATION STAGE SCANNING SYSTEM
Pre-configured desktop translation stage hyperspectral scanning solution, capable of scanning A3, A4 and 1m x 1m areas - ideal for document scanning in art conservation and forensic analysis applications.
Fully compatible with all of our
hyperspectral cameras and fully operated - by both experienced and new users - through our unique
spectraSENS software.
SYSTEM OVERVIEW

ClydeHSI translation stage solutions are complete integrated solutions that can simultaneously hold one or two hyperspectral cameras and acquire data simultaneously to capture full spectral from 400 to 2500 nm depending upon the hyperspectral cameras chosen.
The systems are complete pre-configured scanners for area scanning over approximately A4, A3 and 1m x 1m sized areas by looking down onto target materials.
Ideal for document scanning in A4 and A3 sizes.
All units comprise rigid camera support arm, precision height adjustable and with sensors for square pixel determination. Sample holders for documents, books, paintings, and other objects in various applicational fields are also available from ClydeHSI.
Automatic placement of white tile for 100% reflection measurement and focus tile to check image focus. The 1m2 scanner has an optional high-resolution 2D camera for conventional photography and survey use.
TECHNICAL SPECIFICATIONS
| Parameter | Units | |||
|---|---|---|---|---|
| Model | A4 | A3 | 1m2 | - |
| Scan Area | 250 x 300 | 300 x 500 | 1000 x 1000 | mm2 |
| Scan Track Range | 400 | 600 | 1200 | mm |
| Scan Rate at 100 lfps | * | * | * | - |
| Scanner Depth | 600 | 600 | 1400 | mm |
| Scanner Length | 750 | 1200 | 1400 | mm |
| Control Interface | USB 2.0 | USB 2.0 | USB 2.0 | |
| Power | 90 to 260, 50/60 | 90 to 260, 50/60 | 90 to 260, 50/60 | V AC, Hz |
