ART SCANNER
SCANNING SYSTEM
Highly stabilised and monitored X Y (Z)
hyperspectral scanning solution for precision scanning of artworks and objects up to 1m x 1m or 2.5m x 2.5m - ideal for when large areas must be scanned, whilst prioritising high precision and resolution.
Fully compatible with all of our
hyperspectral cameras and fully operated - by both experienced and new users - through our unique
spectraSENS software.
SYSTEM OVERVIEW
ClydeHSI hyperspectral 2-D Large Area Art Scanning Systems allow our clients to view and analyse their fine works of art like never before.
Highly stabilised and monitored X Y (Z) scanning system for precision scanning of artworks and objects up to 1m x 1m or 2.5m x 2.5m, with macro capability up to 25µm across the full target area and spatial step resolutions as fine as 5µm.
Shape tracking facility and stand-off distance adjustment that maintains the system geometry to artwork. Unique Curvature Monitor and compensation system to maintain on-target resolution, ensure focus, and accommodate for shape changes in the artwork across the scanning area.
Ideal for when large areas must be scanned, whilst prioritising high precision and resolution.
TECHNICAL SPECIFICATIONS
| Parameter | Value | Units | Comment |
|---|---|---|---|
| Scan Movement | X, Y, Zs, Zm | - | Multi-modal operation with spectral correction and multi-strip mosaic imaging for large area high resolution scans |
| Maximum Scan Area | 2500 x 2500 | mm2 | Broad spectral range idel for colour and materials identifications needs |
| Maximum Scan Pixel Area | 88,000 x 88,000 | Pixels | Up to 7.74GPix HSI images |
| Scan Step Resolution | 5 | µm | |
| Optical Resolution on Target | ≥25 | µm | Higher resolution available using a macro lens |
| X-Y Position Feedback | Encoded | - | |
| Zs, (Stand-off Stage) | 0 to 3000 | mm | Other stand-off distances are available, please contact ClydeHSI |
| Zm (Macro Stage) | ± 75 | mm | |
| Zm Control System | Real-time distance measurement | - | Control system automatically adjusts for curvature of the artwork |
| Spectral Camera Payload | ≤50 | kg | |
| Survey Camera | - | 16Mpix, 400Mpix options; interchangeable lenses |

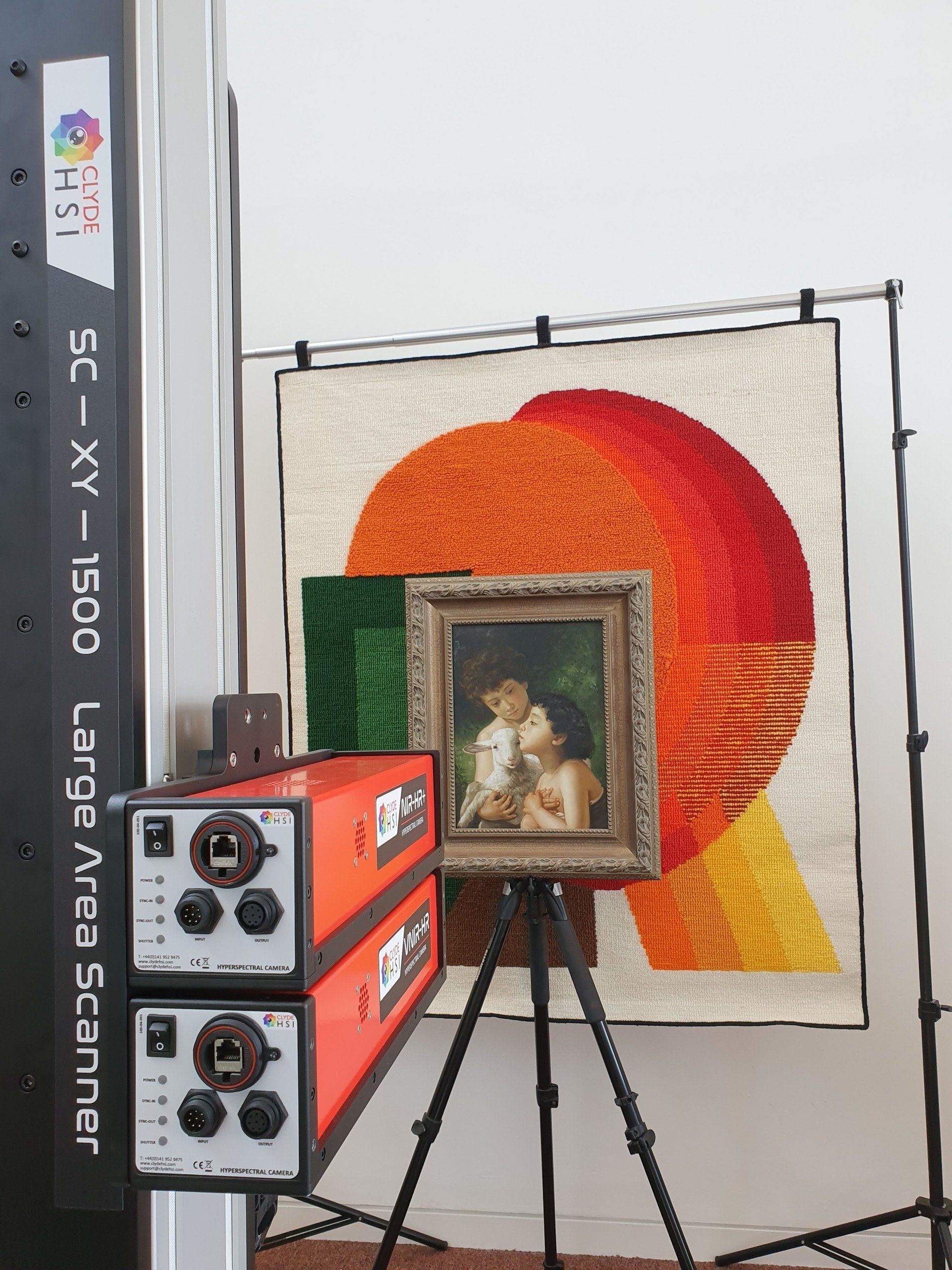

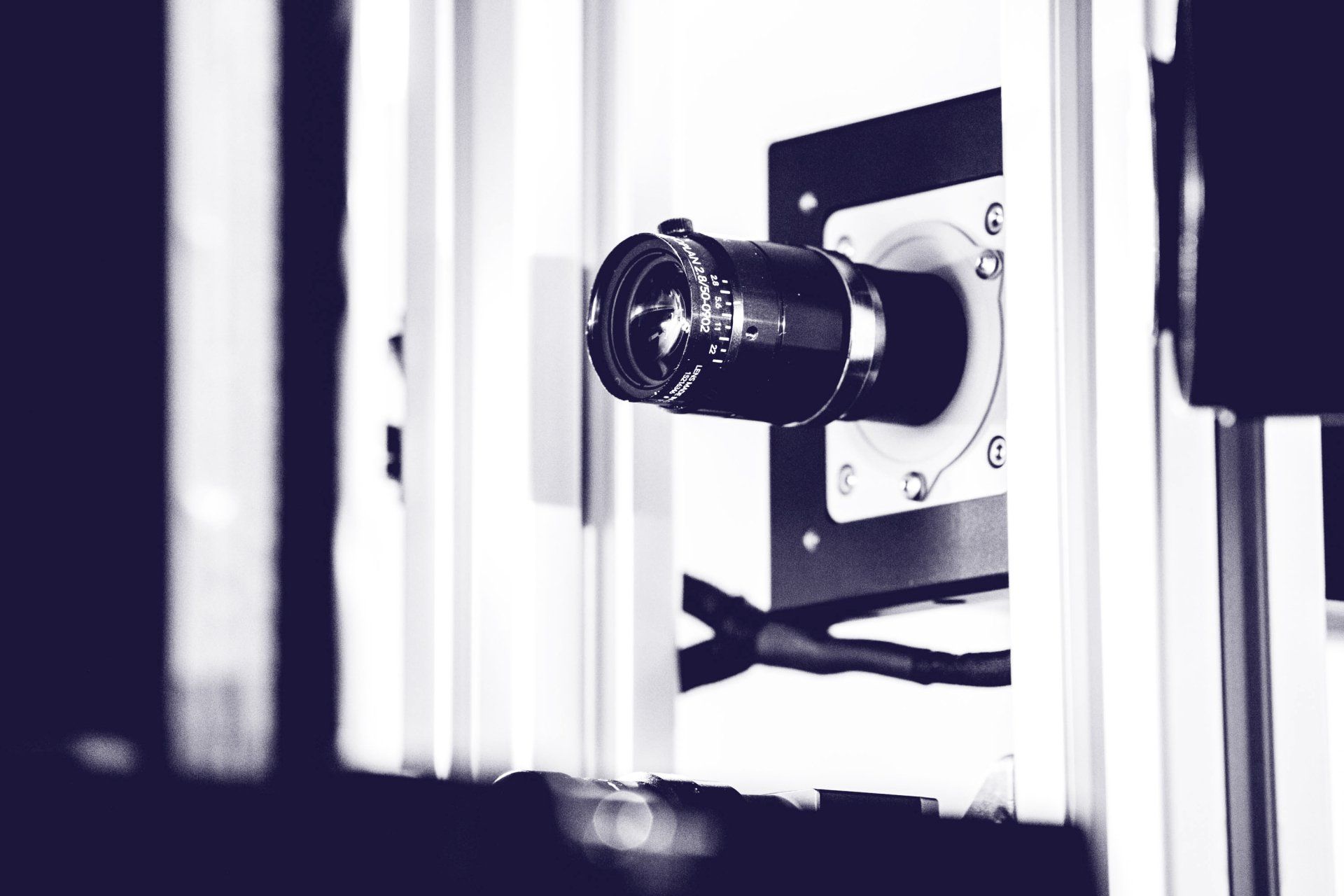

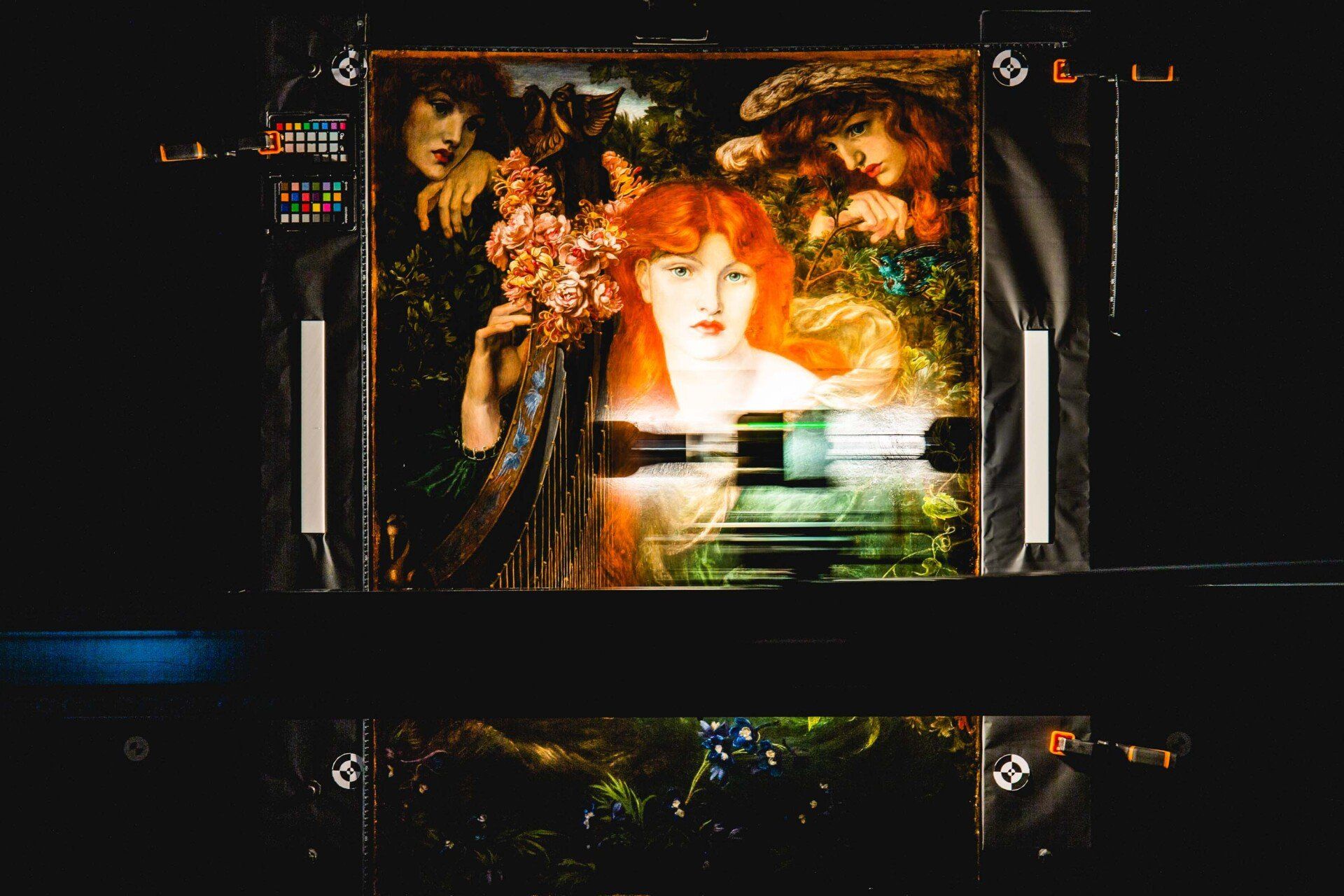

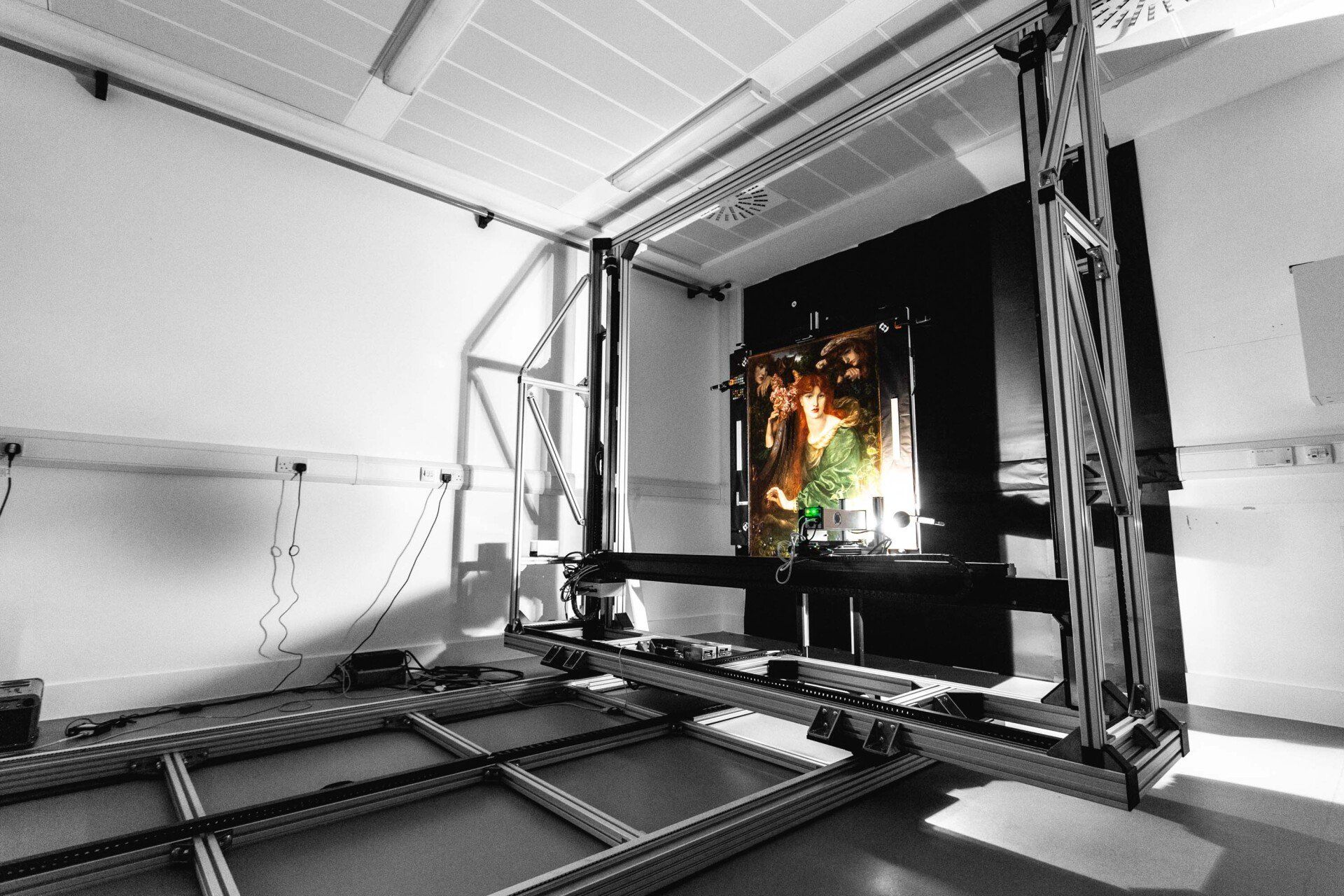

PHOTOS OF ART SCANNER SYSTEM
