RAMAN-532 HYPERSPECTRAL CAMERA
Spectral Range:
520-635 nm
Spectral Resolution: 0.3 nm
Ultra high resolution (≤ 2.5nm FWHM) hyperspectral imaging camera with electron multiplying CCD detector, ensuring highest possible spectral and sensitivity performance.
Ideal for any application requiring the highest precision and detail in hyperspectral imaging data.
Fully compatible with all of our
hyperspectral scanning solutions and suitable
objective lenses.
TECHNICAL SPECIFICATIONS
Note: technical specifications can vary dramatically based on many factors i.e. lens being used, application parameters etc. The figures below show the specifications of the camera operating under typical/expected conditions.
| Parameter | Value | Units |
|---|---|---|
| Mode of Operation | Push-broom | - |
| Spectral Range | 520 to 635 | nm |
| Spectral Resolution | 0.3 | nm FWMH |
| Spatial Pixels (Cross Track) | 1280 | pix |
| Spectral Pixels | 1024 | pix |
| Effective Slit Length | 12 | mm |
| Detector Configuration | Back thinned frame transfer cooled EMCCD | - |
| Wavelength for Peak Quantum Efficiency | ± 75 | nm |
| Non-linearity | ≤1 | % |
| Digitiser Resolution | 12 | bit |
| Minimum Illumination | 50 | µlux |
| Synchronisation | Trigger in and out, TTL compatible | - |
| Interface | USB-3 | - |

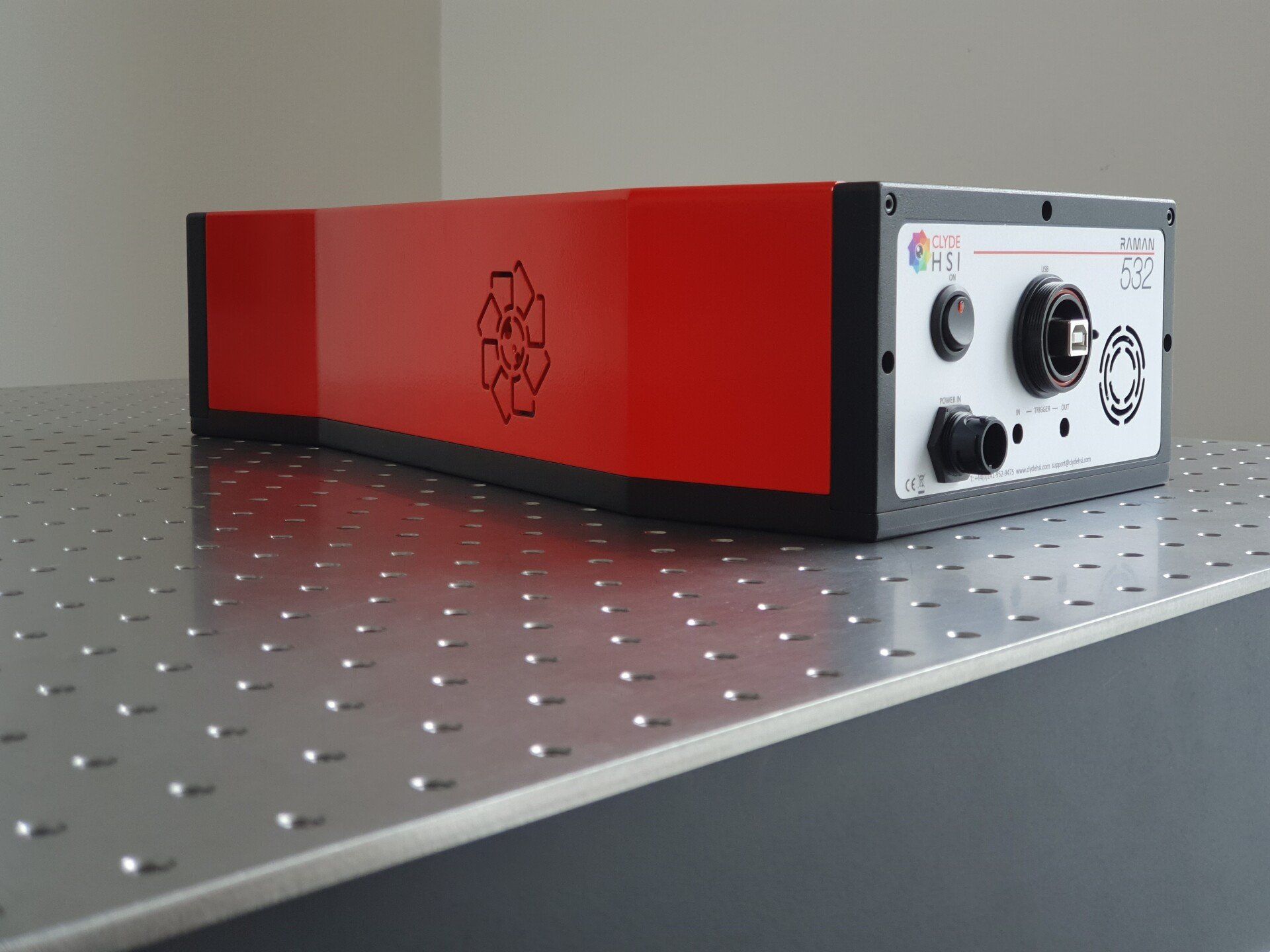

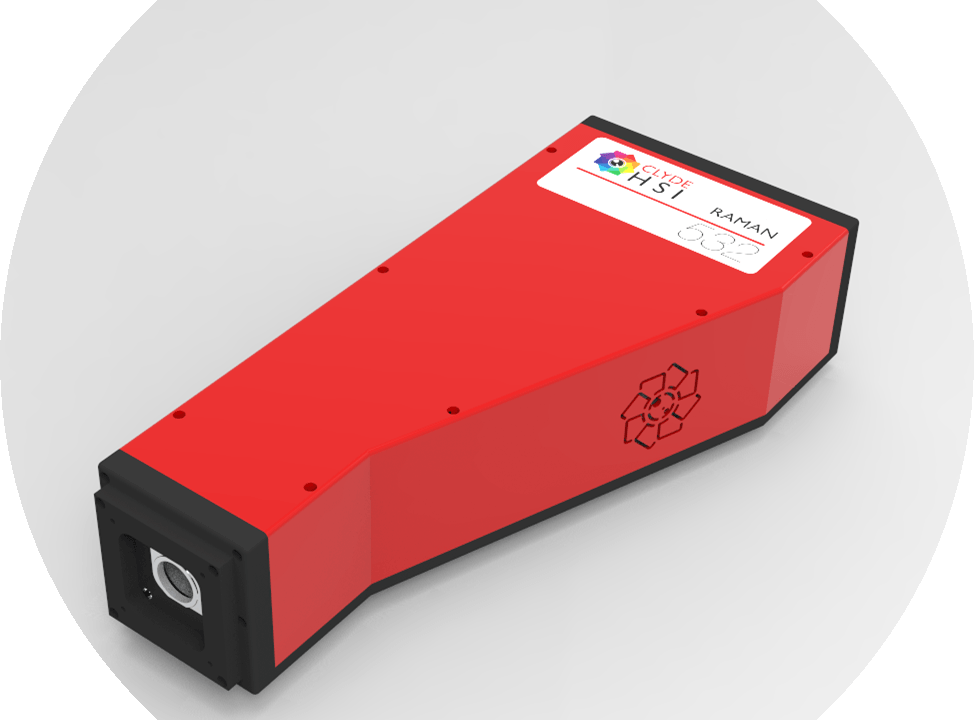

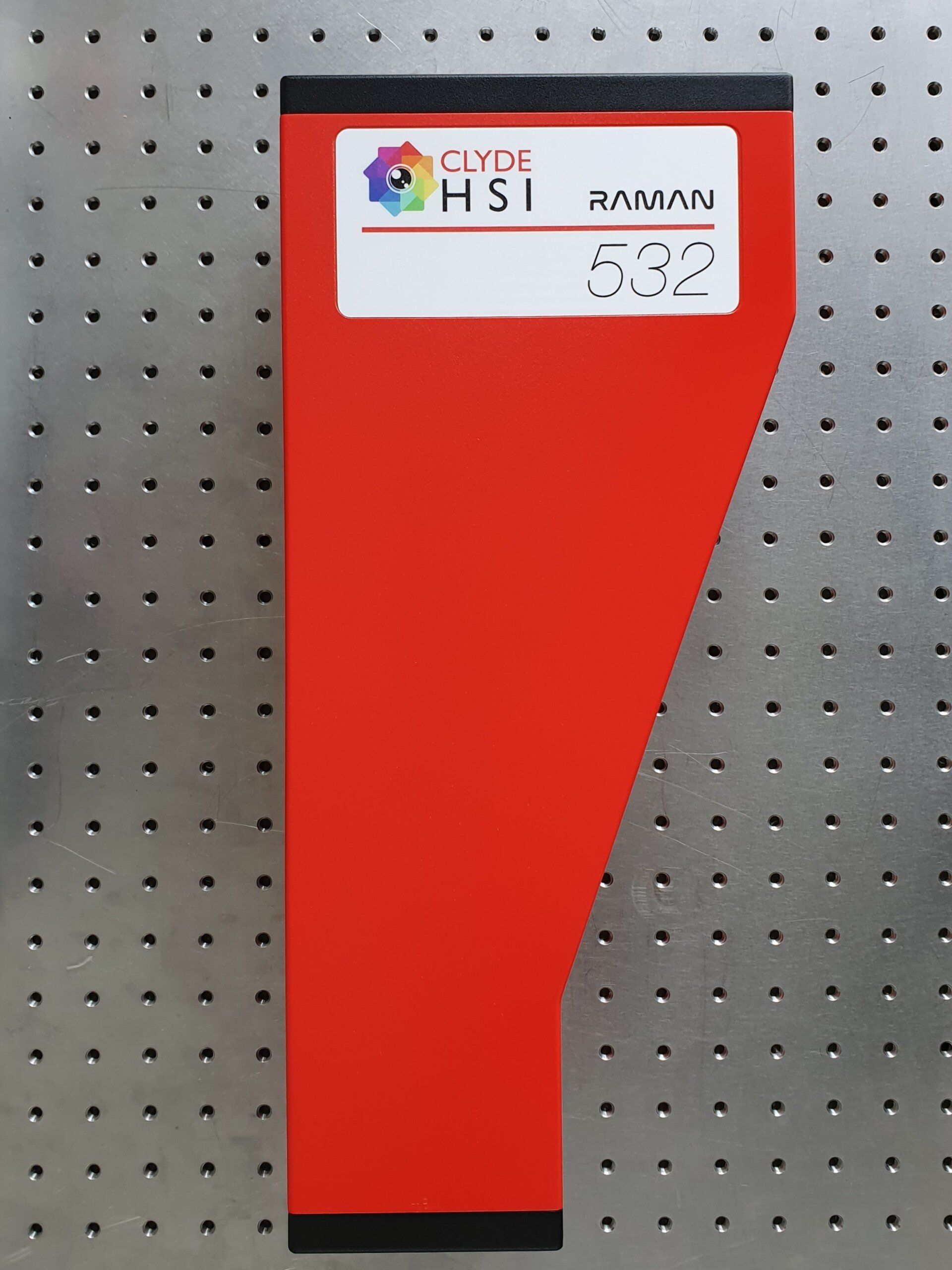

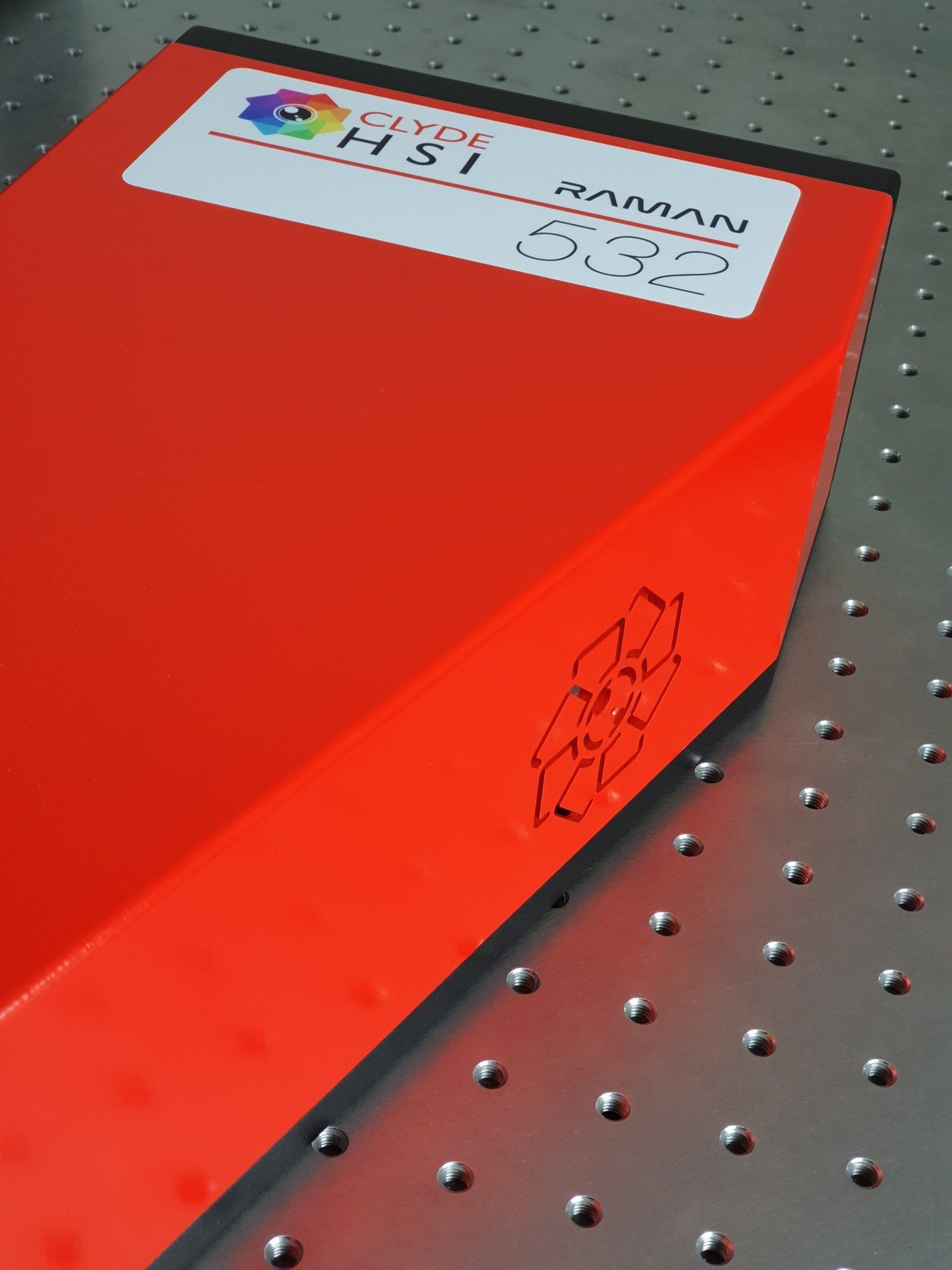

PHOTOS OF RAMAN-532
