NIR-HR+ HYPERSPECTRAL CAMERA
Spectral Range: 950-1700nm
Spectral Resolution: 5 nm
Double the spatial resolution of the
NIR-HR
hyperspectral camera, but without sacrificing frame rates - the perfect option for demanding applications which require improved spatial resolutions whilst maintaining high speed of data acquisition.
Fully compatible with all of our
hyperspectral scanning solutions and suitable
objective lenses.
TECHNICAL SPECIFICATIONS
Note: technical specifications can vary dramatically based on many factors i.e. lens being used, application parameters etc. The figures below show the specifications of the camera operating under typical/expected conditions.
| Parameter | Value | Units |
|---|---|---|
| Mode of Operation | Push-broom | |
| Spectral Range | 950 - 1700 | nm |
| Optical Spectral Resolution | <5 | nm |
| Spatial Pixels (Cross Track) | 640 | pix |
| Spectral Pixels | 512 | pix |
| Smile and Keystone | Sub-pixel across output field | |
| Camera Output | Up to 14 | |
| Camera Interface | USB-3, GiGe, CameraLINK | |
| Frame Rate | 300 | lfps |
| Shutter | Integrated | |
| Lens Mount | C-mount | |
| Input Voltage | 24 | V |

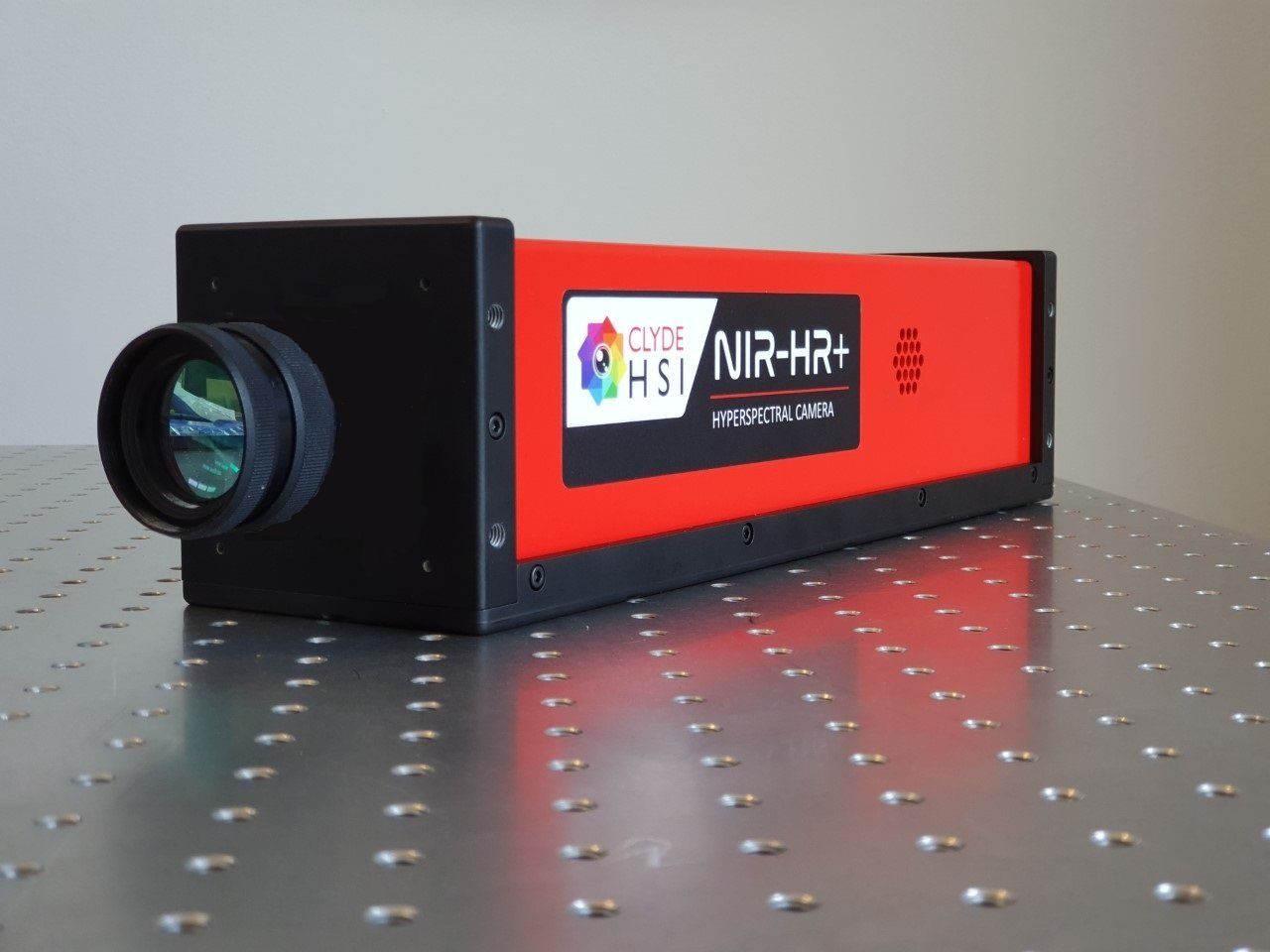

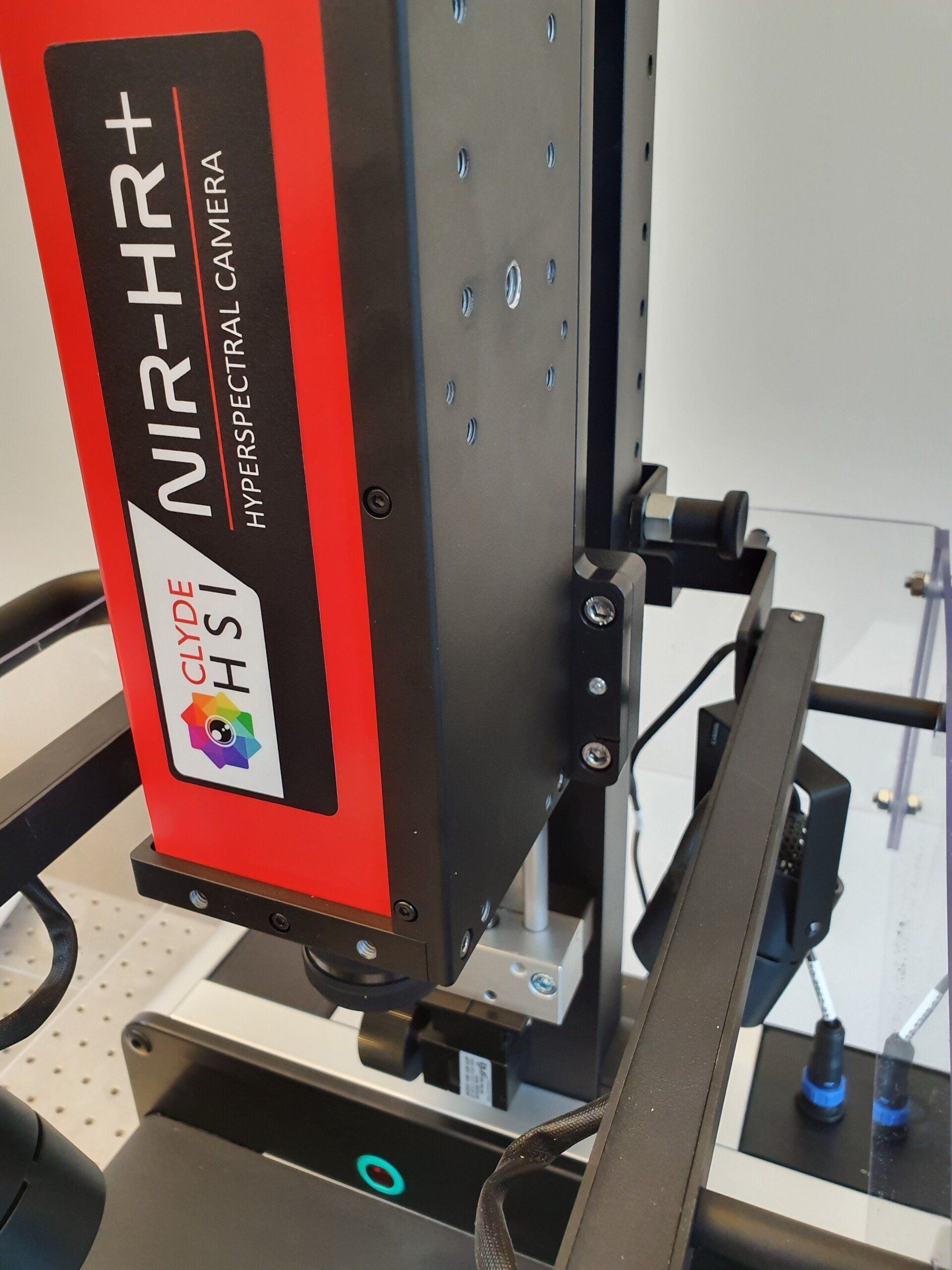

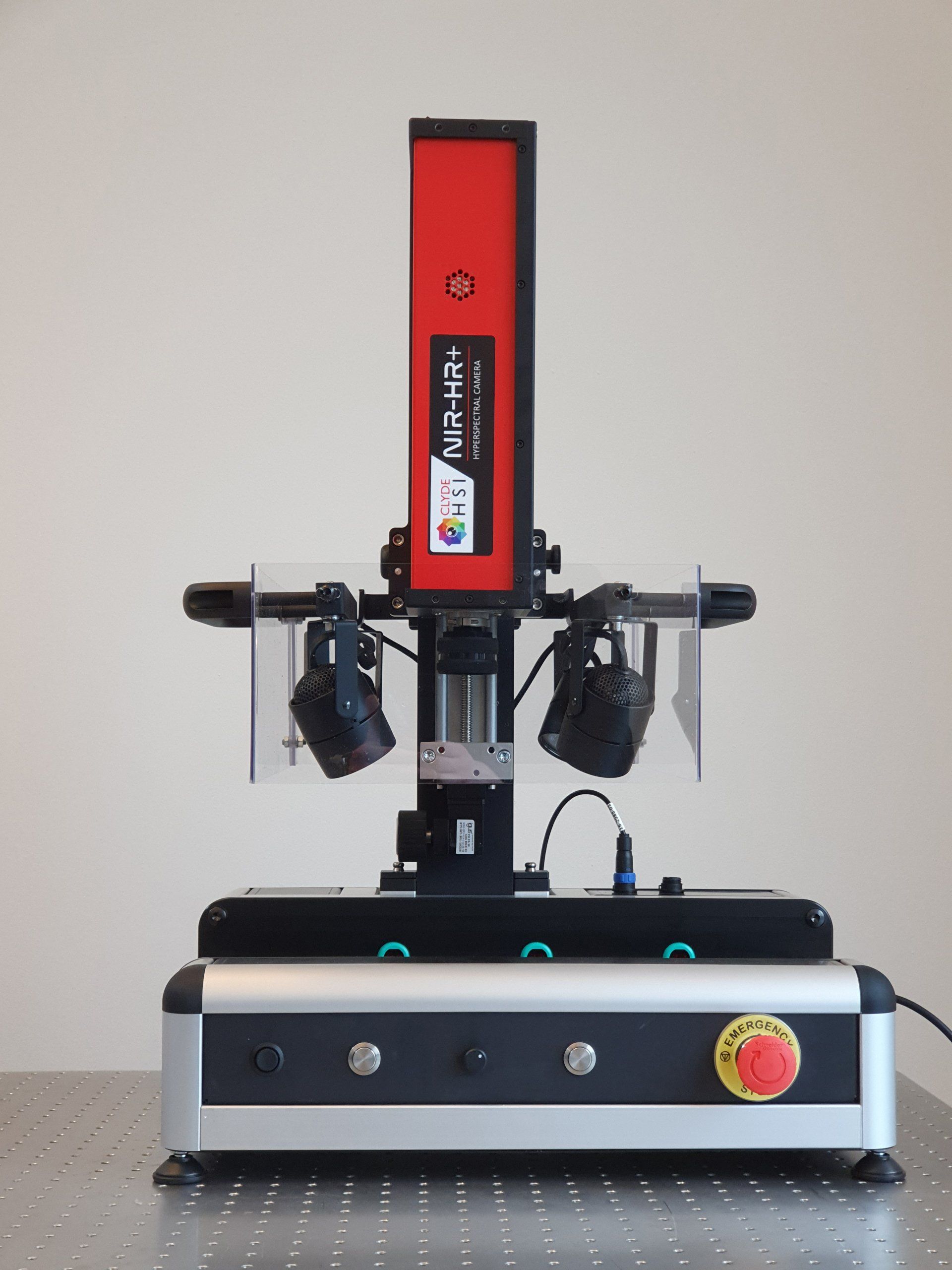

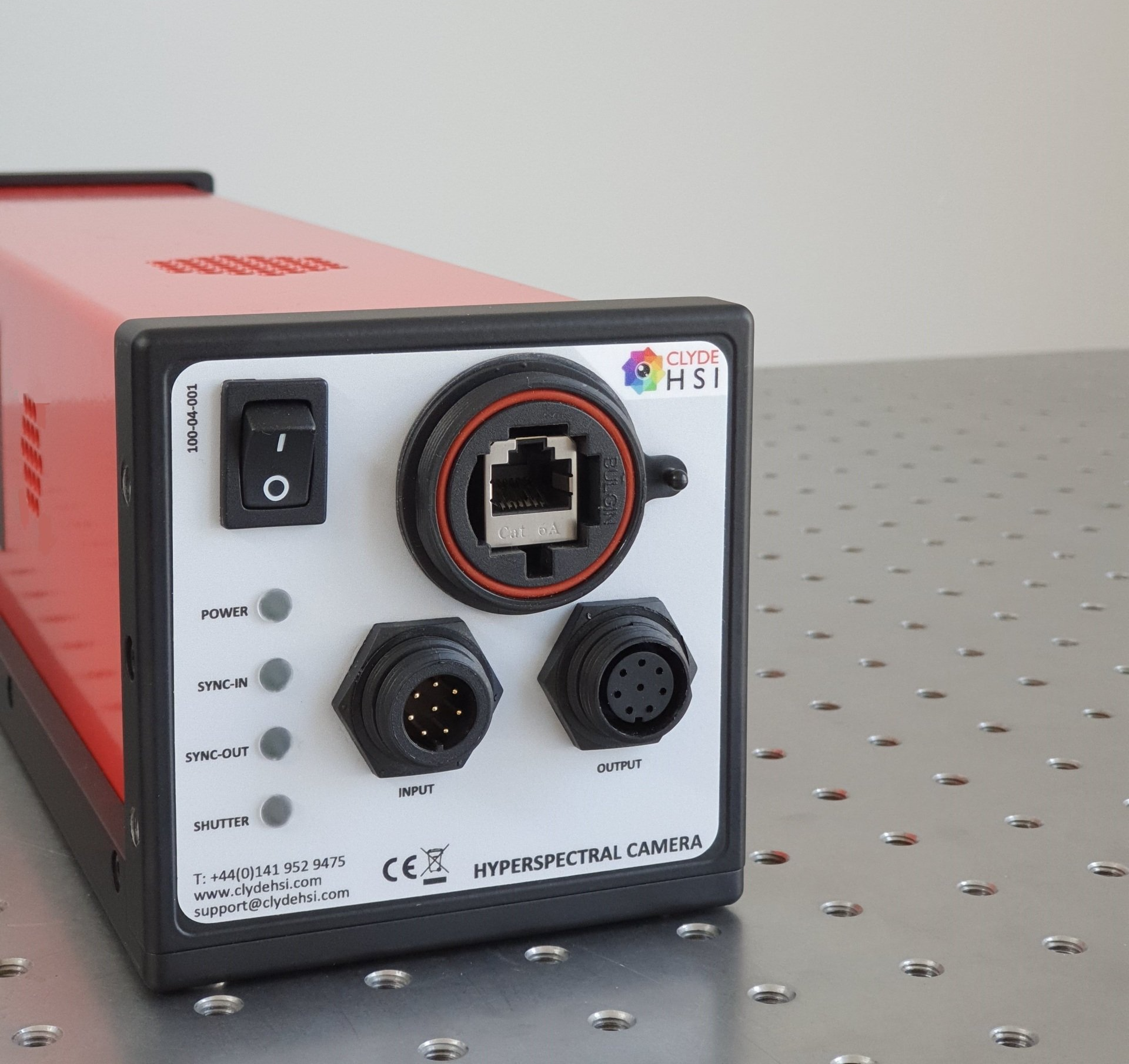

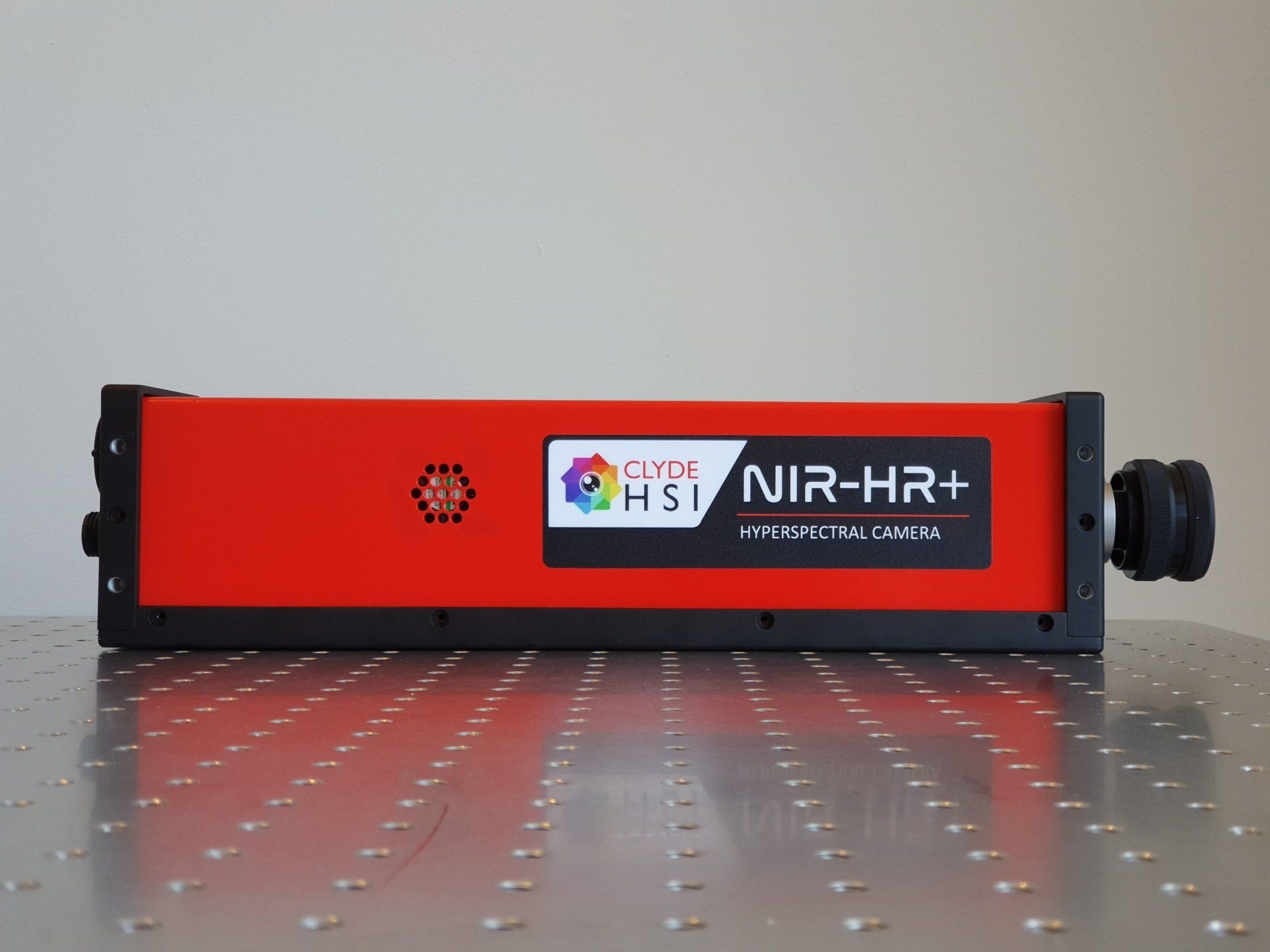

PHOTOS OF NIR-HR+
